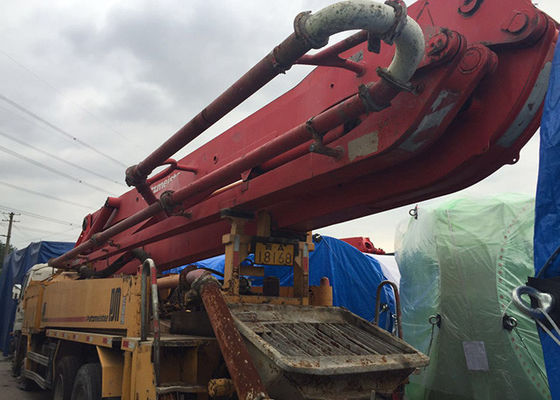

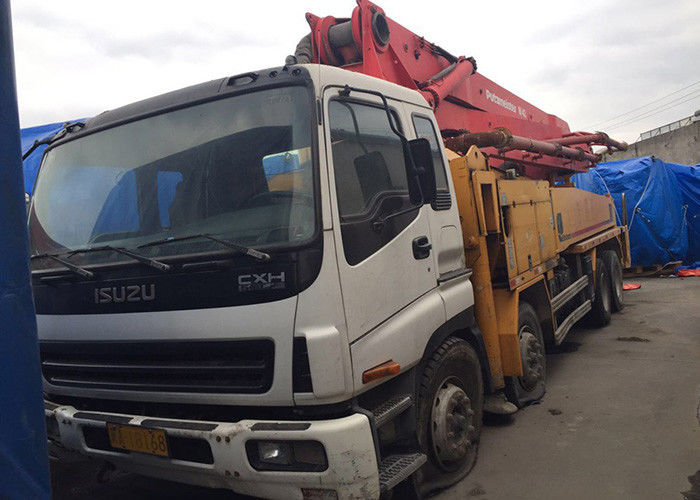

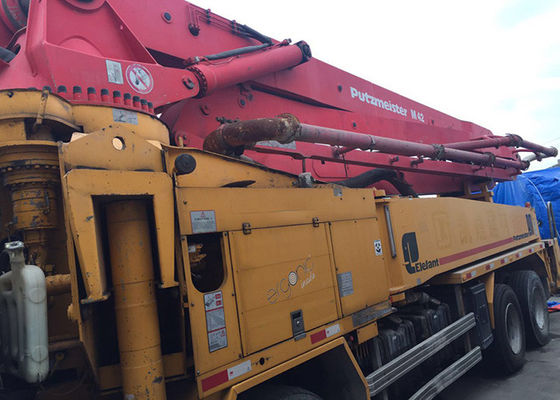

Yellow Putzmeister 42m Second Hand Concrete Pump Truck With Isuzu Chassis

All Products

Used Crawler Excavator (66)

Used CAT Excavators (26)

Used Komatsu Excavator (35)

Used Hitachi Excavator (20)

Used Motor Graders (11)

Used CAT Motor Grader (13)

Second Hand Wheel Loaders (22)

Used CAT Wheel Loader (19)

Used Komatsu Wheel Loader (11)

Second Hand Bulldozer (9)

Used CAT Bulldozer (8)

Used Concrete Pump Truck (8)

Second Hand Road Roller (16)

Second Hand Forklifts (13)

Second Hand Cranes (13)

Used Wheel Excavator (6)

I'm Online Chat Now

Yellow Putzmeister 42m Second Hand Concrete Pump Truck With Isuzu Chassis

Large Image : Yellow Putzmeister 42m Second Hand Concrete Pump Truck With Isuzu Chassis Get Best Price

Product Details:

Place of Origin:	JAPAN
Brand Name:	Putzmeister / Isuzu
Certification:	CE, ISO
Model Number:	42m

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	BULK RORO
Delivery Time:	3-5 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	10 units per month

Contact Now

Detailed Product Description

Power Type:	Diesel	Warranty:	1 Year
Condition:	Used	Product Name:	Concrete Pump Truck
Application:	Construction	Color:	Yellow
Keyword:	Concrete Pump Truck
Highlight:	truck mounted concrete pumps , old concrete pump truck

Used Putzmeister 42m Concrete Pump ISUZU Chassis concrete pump truck Elephant Concrete Pump Truck

Travel
Category	Item	Unit	Parameter
Chassis	Manufacturer		Puetzmeiser
	Max. speed	km/h	90
	Max. gradeability		38%
	Min. turning diameter	m	27.4
	Brake distance	m	≤10
	Wheelbase	mm	1995+5205+1370+1450
	Tread (front/rear)	mm	2028/1872
	Approach angle/departure angle	.	11/18
	Min. clearance	mm	270
	Tyre specification		12.00R20
Engine	Model		D13
	Output power	kw/(r/min)	324/1400~1800
	Max. torque	N.m/(r/min)	2200/1050~1400
	Displacement	l	12.8
	Emission Standard		Nation III GBⅢ
Others	Dimension (Length×Width×Height)	mm	14885×2500×3990
	Total vehicle weight	kg	49750
	Fuel tank capacity	l	410
	Fuel consumption per 100km	l/100km	50
Pumping operation
Pumping system	Theoretical output(high pressure/low pressure)	m3/h	100/163
	Concrete pumping pressure(high pressure/low pressure)	Mpa	8/13
	Theoretical pumping times(high pressure/low pressure)	/min	13/21
	Max. diameter of pumping concrete aggregate		40
	Feeding height		1530
Placing boom	Pumping slump range		12/23
	Reach height		55.7
	Reach depth		44
	Slewing radius		51.7
	Slewing angle		364
	1st boom stretch angle		96
	2nd boom stretch angle		180
	3rd boom stretch angle		180
	4th boom stretch angle		180
	5th boom stretch angle		260
	Outrigger span	Overall outrigger span	11250±50
		Front outrigger transverse span	11400±50
		Rear outrigger transverse span	11300±50
Others	Dosing type		S valve
	Lubricating method		Automatic lubrication
	Controlling method		Manual/remote control
	Water tank capacity		700
	Max. pressure of water pump		2

Available from Stock:

Yellow Putzmeister 42m Second Hand Concrete Pump Truck With Isuzu Chassis 0

category	brand	model
Used excavator	hitachi	EX60,EX100,EX120,EX200.ZX200,EX300,EX400,ZX330,ZX450,ZX470
	Cat	320b,320c,320d,330B,330c,330d,336,345
	kobelco	Sk200
	komatsu	Pc55/60/200/220/300/400
	Daewoo/hyundai	Dh220,solex220
Used wheel loader	cat	950,966f,962G,966G
	komatsu	Wa320,350,360,380,420,470
	Tcm/Kawasaki/furukawa	75B,850/870,KLD70/85Z,FL230/330
Used bulldozer	cat	D3/4/5/6/7/8/9
Used bulldozer	komatsu	D85/D155
Used compactor	DYNAPAC	Ca25,ca251,ca30,ca301,ca51,ca602
	Ingersoll-rand	Sd100,sd150,sd175
	cat	Cs531
Used motor grader	cat	12g/h/120g/h/140g/h/140k
	komatsu	GD505,405,GD605,GD511
	Mitsubishi	MG400,MG550
	Chaimpion/Dresser	740,850,870
Used crane	Mobile crane kato/tadano	20----300ton
	Crawler crane,kobelco/sumitomo/hitachi	30----300ton
	Rough terrain crane,kato/tadano/Grove	25---50ton
Used forklift	TCM/TOYOTA/KOMATSU/Fantuzzi reach stacker	2---50ton
Used mixer,tractor,pump truck	ISUZU,FUSO,Mitsubishi,HINO,VOLVO	CX35,FH12.FM9.FM12…

Our customer:

Our company professionally export all kinds of used construction & engineering machinery for many years, our products including Excavator, Bulldozer, Loader, Crane, Grader, Road roller, Forklift. The brands include , Hitachi, komatsu, Daewoo, Kobelco, Hyundai, Volvo, Kawasaki, KATO, Tadano and so on, we have customers from The Southeast Asia, Africa,The Middle East,The South America,and we are looking for the long and good business relationships with you !

Our Services

Yellow Putzmeister 42m Second Hand Concrete Pump Truck With Isuzu Chassis 2

Pre-Sales Service

We trust that customer satisfaction is the only benchmark to inspect our works.

1.Airport picking

2.Hotel booking

3.Translating and guiding during your visit in Shanghai

After-Sales Service:

1. Training how to instal the machine, training how to use the machine.

2. Engineers available to service machinery overseas.

Yellow Putzmeister 42m Second Hand Concrete Pump Truck With Isuzu Chassis 3
